BÖHLER W350 ISOBLOC

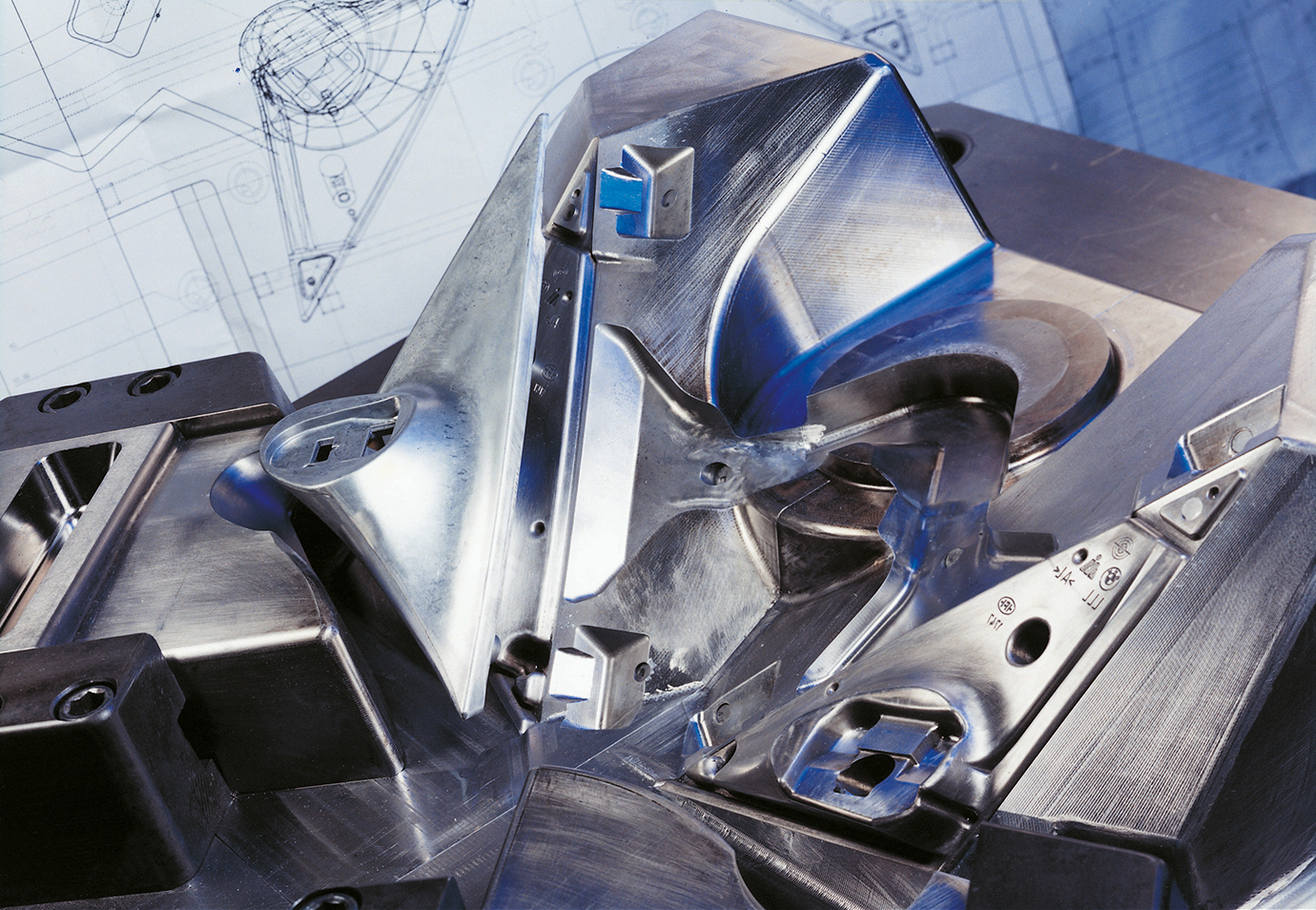

BÖHLER W350 ISOBLOC is a material produced by the electroslag remelting process (ESR) which is particularly suitable for use in large casting and forging molds. Although the steel can be classified as a 5% chromium steel, the chemical composition has been chosen to provide the best possible through-hardenability without any loss of toughness or resistance against heat-checkings. These properties make the steel the perfect choice to produce very large die casting molds, for example for mega- or giga-casting.
Available Product Shapes
Long Products: ) Presented data refer exclusivly to long products. Please observe the detailed explanations at the end of the data sheet (pdf).
Melting Route
Airmelted + Remelted
Property Features
- Toughness & Ductility: very high
- Wear Resistance: high
- Machinability: very high
- Hot Hardness (red hardness): high
- Polishability: very high
- Thermal conductivity: very high
- Micro-cleanliness: high
Technical Specifications
Material Numbers
- Market grade
- BÖHLER patent
- NADCA
- E1850
Standards
- NADCA
- #207
Chemical Composition
* Chemical Composition (Average %)
- C
- 0.38
- Si
- 0.20
- Mn
- 0.55
- Cr
- 5.00
- Mo
- 1.80
- V
- 0.55
- N
- def.
